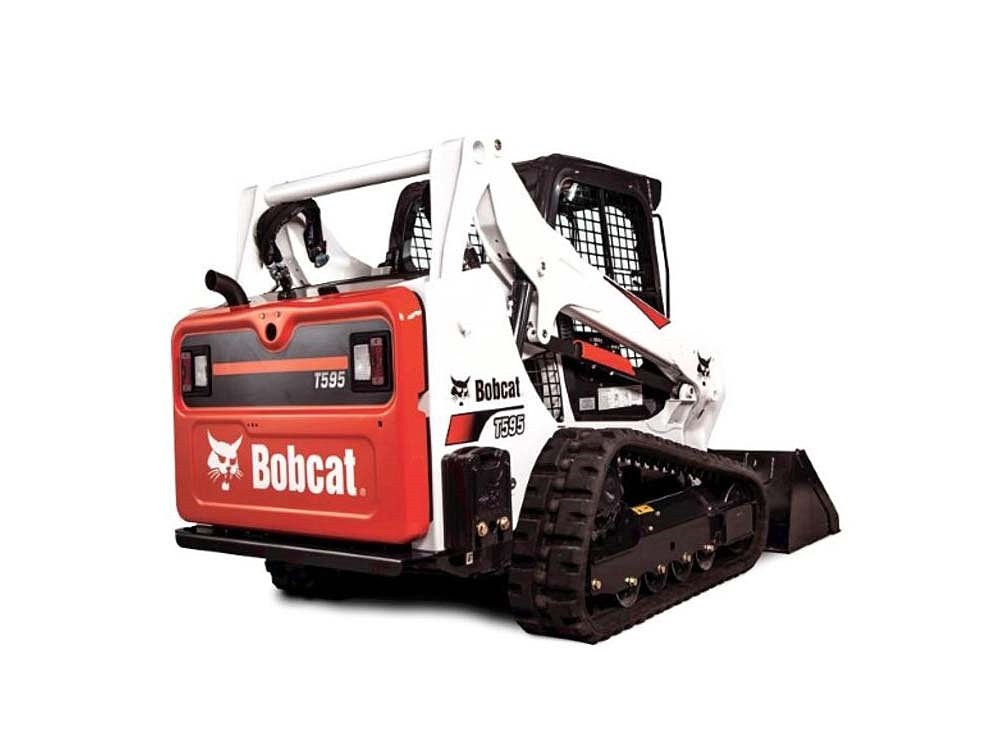

Bobcat® Compact Track Loaders T595

Features may include:

Unmatched power to help you push through your toughest jobs.

Bobcat mini track loaders replace manual labor and equipment like wheelbarrows in tight areas where larger equipment wouldn’t fit. Powered by Tier 4 diesel engines and efficient hydraulic systems, they deliver fast cycle times, strong breakout force and excellent pushing ability. The MT100 delivers even greater rated operating capacity and breakout force for peak productivity.

Bobcat mini track loaders can travel and work where other machines can’t, easily maneuvering in confined spaces both indoors and outdoors. The smaller size allows them to squeeze through doorways and fence gates, and they are easy to load and transport on a trailer.

The ISO joystick controls on the Bobcat MT100 mini track loader are ergonomically designed and provide finely tuned precision so it’s easy and comfortable to maneuver your machine.

Bobcat mini track loaders allow you to travel over established surfaces with less worry about repair time and costs associated with surface damage. Ground pressure of 5.25 psi with the standard narrow tracks provides good protection for most turf and finished surfaces. At just 3.97 psi, you can achieve the lightest possible footprint for sensitive surfaces – and your mini track loader is still only 41.1 inches wide.

The ISO joystick controls on the MT100 deliver finely tuned precision that makes it easy and comfortable to maneuver your mini track loader.

The integrated ride-on platform on the MT100 keeps you above the surface conditions at all times and provides a wider view to the sides, as well as to attachments and the bucket cutting edge.

Like their larger Bobcat loader counterparts, mini track loaders have many of the industry’s leading safety features. Neutral-start interlocks prevent the unit from being started while travel controls are engaged. An attachment shutdown system engages when the operator leaves the machine. Lift arm and tilt lockout systems prevent accidental movement of the lift arms or attachments. A reverse-travel stop panel returns the driver levers to neutral when pushed in. A parking brake prevents the mini track loader from moving when not in use.

• Bobcat® Compact Track Loaders T595

• Year2020
• ManufacturerBobcat®
• Model NameCompact Track Loaders
• Trim NameT595
• Generic Type (Primary)General
• EmissionsTier 4
• CoolingLiquid
• Fuel TypeDiesel
• Engine Power74 hp (55.2 kW)

• Operational

• Operating SpeedTravel: 7.1 mph (11.4 km/h)

• Hydraulics

• Maximum PressureGround (Rubber): 5.1 psi (0.35 bar) | System Relief @ Quick Couplers: 3,500 psi (241.32 bar)
• Hydraulic FlowAuxiliary Std: 17.1 gal/min (64.7 l/min) | Auxiliary High: 26.7 gal/min (101.1 l/min)

• Dimensions

• Length133 in (3378 mm) | Without Attachment: 104.6 in (2657 mm) | With Standard Bucket: 133 in (3378 mm) | Of track on ground: 54.1 in (1374 mm)
• Width67.1 in (1704 mm) | With bucket: 68 in (1727 mm) | Track: 12.6 in (320 mm)
• Height77.8 in (1976 mm) | With Operator Cab: 77.8 in (1976 mm) | To Bucket Hinge Pin: 119 in (3023 mm) | Reach @ Maximum: 34.9 in (886 mm)
• Turning Radius80 in (2032 mm)

• Capacities

• Fuel CapacityTank: 36.5 gal (138.2 l)
• Load Capacity, LandTipping: 6285 lb (2851 kg)
• Weight, Maximum CapacityRated Operating (ISO): 2,200 lb (998 kg) | Operating (50% of Tip): 3142 lb (1425 kg)

• Weights

• WeightOperating: 8055 lb (3654 kg)
