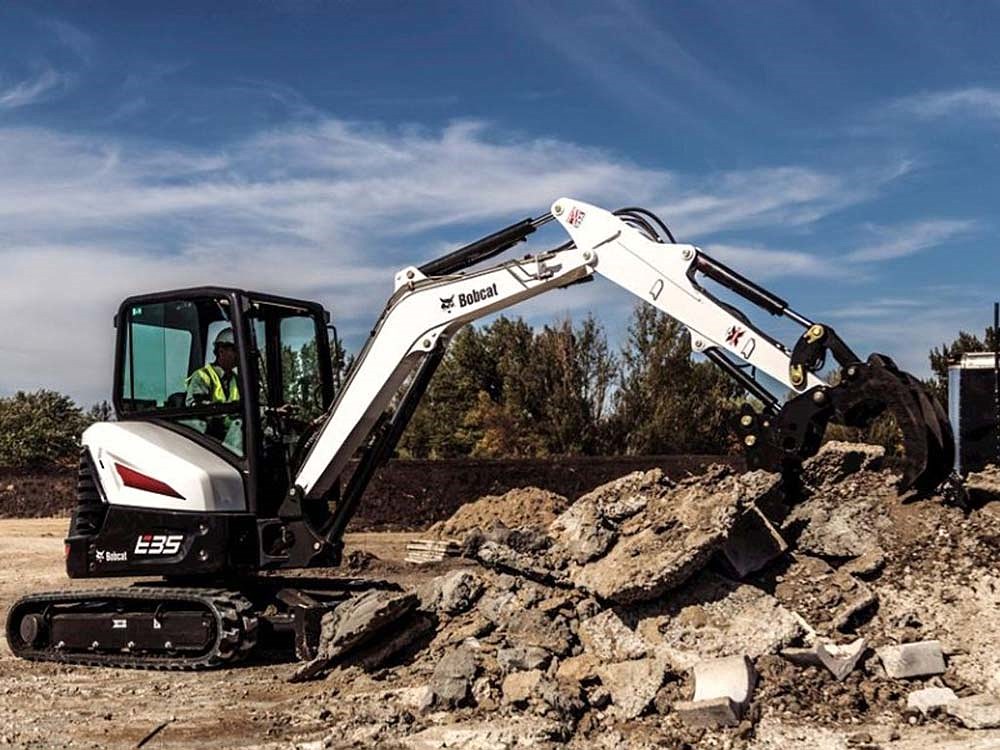

Bobcat® Excavators E35

Part of the R-Series, the Bobcat® E35 compact (mini) excavator is a popular choice in the 3-ton size class. Zero Tail Swing (ZTS) provides unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property.

Features may include:

Unmatched power to help you push through your toughest jobs.

Whether you’re traveling across a job site, backfilling, or digging, your excavator’s hydraulic system contributes to performance more than any other feature. When compared to other brands, advanced hydraulics on Bobcat® excavators deliver the most horsepower in the working range.

Bobcat® compact excavators deliver the house, boom, arm and bucket control you expect in the most challenging work environments. It’s the confidence in these precise movements that determines whether you complete the job using your machine, or with two workers and a pair of shovels.

Bobcat® excavator controls allow you to make fine movements with low effort and maximum comfort – so you can get precise results in less time, with less fatigue. With the boom swing control on the joystick, you get more floor space and foot room for better operator comfort on long, tiring jobs.

With deluxe instrumentation, vital machine information is at your fingertips. A full-color, 5 in. display gives you access to operation data, functional lockouts, maintenance reminders, eco mode, and includes an integrated keyless start system.

Achieve an accurate grade every time without leaving your cab by using the Bobcat® depth check system. Efficient and easy to use, the system delivers accurate dig depth measurement for precise digging performance. It eliminates over-digging and the costs associated with backfilling and compacting fill material. It also prevents under-digging and the resulting need for manual labor to finalize depth or grade.

Multiple arm configurations are available on select models: standard, long, and extendable. Depending on the reach, depth, power, and lifting performance you need, there’s an arm to meet the needs of your job and increase productivity.

For added stability, the counterweight on R-Series compact (mini) excavators is integrated into the structure of the machine. This design contributes to an improvement of lift-over-side capacity by up to 15 percent in select models. You’ll notice the difference when you’re lifting a heavy load - such as a culvert - and slewing over the side of the machine.

Auto-shift travel shifts the machine out of high range and back automatically, offering superb travel performance without having to manually downshift. It automatically transitions the travel motors to and from high range, giving you greater tractive effort with no manual shifting. A directional lug track also provides a smoother ride and less vibration when traveling.

Simplify grading and leveling. Blade float exerts a minimal, consistent down-force on the blade, with minimal operator input.

Bobcat® compact excavators are engineered to operate in the smallest of workspaces. R-Series excavators feature the exclusive in-track swing frame, which allows you to get closer to your work. The swing castings and cylinders stay within the tracks when you dig in an offset position.

• Bobcat® Excavators E35

• Year2020
• ManufacturerBobcat®
• Model NameExcavators
• Trim NameE35
• Generic Type (Primary)Compact
• EmissionsTier 4
• Fuel TypeDiesel
• GovernorMaximum: 2,550 rpm
• Engine Power24.8 hp (18.5 kW)

• Operational

• Operating SpeedTravel - High: 2.9 mph (4.7 km/h) | Travel - Low: 1.6 mph (2.6 km/h)
• Operating ConditionsArm Digging Force: 4,859 lbf (21,614 N) | Bucket Digging Force: 6,968 lbf (30,995 N)

• Hydraulics

• Maximum PressureAuxiliary: 2,987 psi (205.95 bar)
• Hydraulic FlowAuxiliary Std: 16.9 gal/min (64 l/min)
• DimensionsLift Radius: 118 in (2997 mm) | Boom Swing - Left: 75° | Boom Swing - Right: 55° | Maximum Reach at Ground Level: 17.2 ft (5.2 m)
• Depth, MaximumDig: 10.2 ft (3.1 m)
• Height96.2 in (2443 mm) | Max Dump: 11 ft (3.4 m) | With Operator Cab: 96.2 in (2443 mm)
• Length189.9 in (4823 mm)
• Overall LengthIn Travel Position: 189.9 in (4823 mm)
• Widthin69 (1753 mm)

• Capacities

• Hitch Lift CapacityRated: 3232 lb (1466 kg)
• Fuel CapacityTank: 13.7 gal (51.9 l)

• Weights

• WeightOperating: 7,699 lb (3492 kg) | Class: 3.5 t
