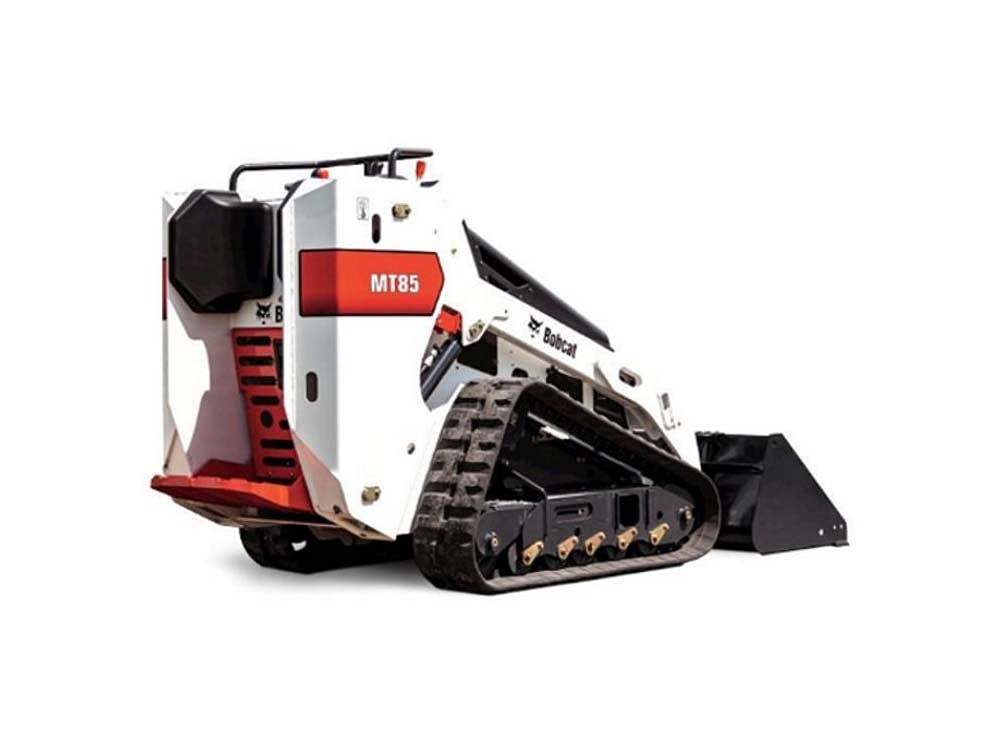

Bobcat® Mini Track Loaders MT85

Features may include:

Unmatched power to help you push through your toughest jobs.

Bobcat mini track loaders replace manual labor and equipment like wheelbarrows in tight areas where larger equipment wouldn’t fit. Powered by Tier 4 diesel engines and efficient hydraulic systems, they deliver fast cycle times, strong breakout force and excellent pushing ability. The MT100 delivers even greater rated operating capacity and breakout force for peak productivity.

Bobcat mini track loaders can travel and work where other machines can’t, easily maneuvering in confined spaces both indoors and outdoors. The smaller size allows them to squeeze through doorways and fence gates, and they are easy to load and transport on a trailer.

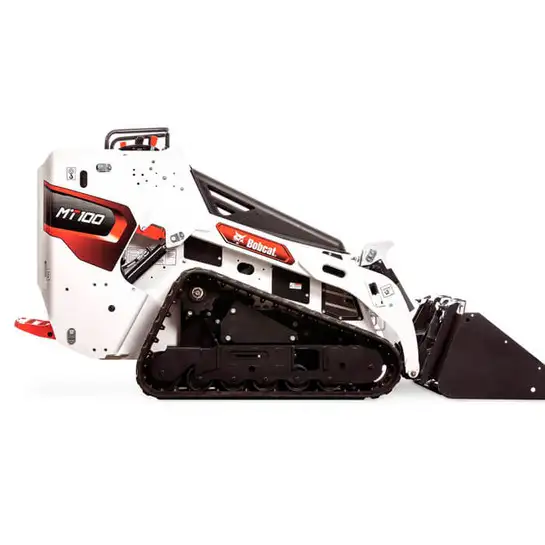

The ISO joystick controls on the Bobcat MT100 mini track loader are ergonomically designed and provide finely tuned precision so it’s easy and comfortable to maneuver your machine.

Bobcat mini track loaders allow you to travel over established surfaces with less worry about repair time and costs associated with surface damage. Ground pressure of 5.25 psi with the standard narrow tracks provides good protection for most turf and finished surfaces. At just 3.97 psi, you can achieve the lightest possible footprint for sensitive surfaces – and your mini track loader is still only 41.1 inches wide.

The ISO joystick controls on the MT100 deliver finely tuned precision that makes it easy and comfortable to maneuver your mini track loader.

The integrated ride-on platform on the MT100 keeps you above the surface conditions at all times and provides a wider view to the sides, as well as to attachments and the bucket cutting edge.

Like their larger Bobcat loader counterparts, mini track loaders have many of the industry’s leading safety features. Neutral-start interlocks prevent the unit from being started while travel controls are engaged. An attachment shutdown system engages when the operator leaves the machine. Lift arm and tilt lockout systems prevent accidental movement of the lift arms or attachments. A reverse-travel stop panel returns the driver levers to neutral when pushed in. A parking brake prevents the mini track loader from moving when not in use.

• Bobcat® Mini Track Loaders MT85

• Year2020
• ManufacturerBobcat®
• Model NameMini Track Loaders
• Trim NameMT85
• Generic Type (Primary)Compact
• EmissionsTier 4
• CoolingLiquid
• Fuel TypeDiesel
• Displacement55 in³ (900 cm³)
• Cylinder Liners3
• Engine PowerHorse: 24.8 hp (18.49 kW)

• Operational

• Operating SpeedTravel: 4.1 mph (6.6 km/h) | Travel - Reverse: 2.9 mph (4.7 km/h)

• Hydraulics

• Maximum PressureGround (Rubber): 4.9 psi (0.34 bar) | System Relief @ Quick Couplers: 2,900 psi (199.95 bar)
• Hydraulic PumpCapacity: 12 gal/min (45.4 l/min)

• Dimensions

• Length106.2 in (2697 mm) | Of track on ground: 40.6 in (1031 mm)
• Width35.6 in (904 mm)
• Height54.6 in (1387 mm) | To Bucket Hinge Pin: 80.9 in (2055 mm) | Reach @ Maximum: 18.6 in (472 mm)

• Capacities

• Fuel CapacityTank: 7 gal (26.5 l)
• Load Capacity, LandTipping: 2458 lb (1115 kg)
• Weight, Maximum CapacityRated Operating (ISO): 850 lb (386 kg)

• Weights

• Weight, In Running Order3103 lb (1407 kg)
