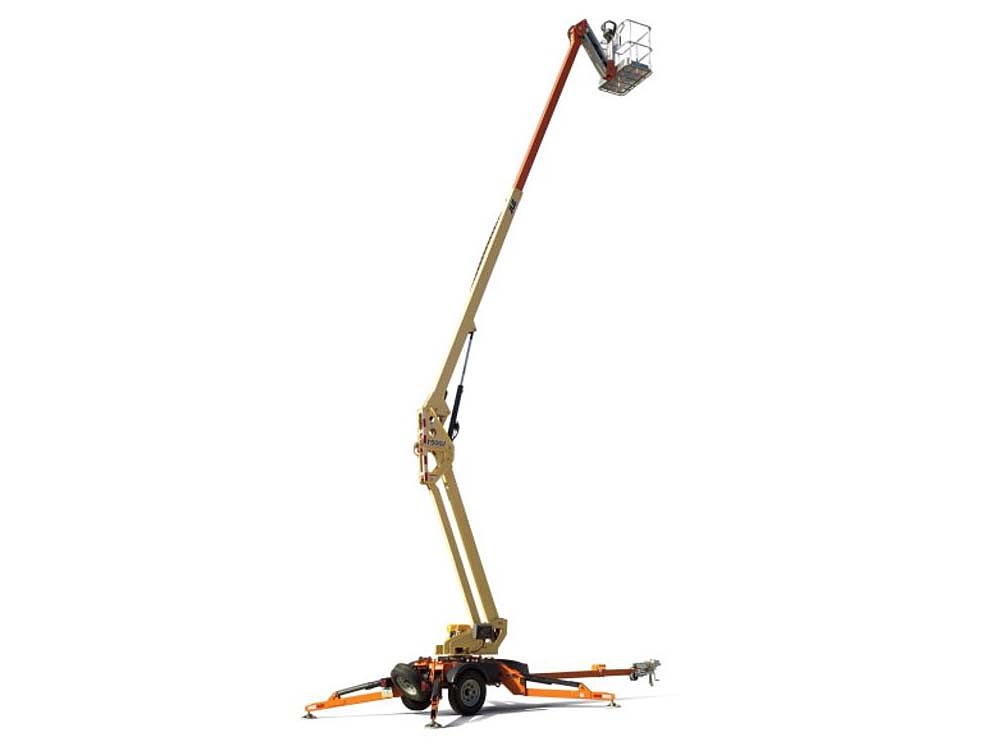

JLG® Tow-Pro Boom Lifts T500J

Features may include:

• Gasoline engine or 24V DC electric power

• Standard air and water lines to platform

• Accessory Mounting Tray accommodates your generator, air compressor or pressure washer

• JLG® Tow-Pro Boom Lifts T500J

• Year2021
• ManufacturerJLG®
• Model NameTow-Pro Boom Lifts
• Trim NameT500J
• Generic Type (Primary)Articulating

• Wheels & Tires

• Tires, Front Specification225/75 R14 Pneumatic
• Tires, Rear Specification225/75 R14 Pneumatic
• Battery4 x 6V 220 A-h

• Operational

• Operating ConditionsFrame Leveling: 11 Degrees | Leveling Capability: 11 Degrees | Swing: 410 Degrees | Jib - Range of Articulation: 130 Degrees
• Ground PressureMaximum Ground Bearing Pressure: 31 psi / 2.17 Kg/cm2
• Operating SpeedTowing Rating: 65 mph / 104.61 km/h
• DimensionsPlatform A: 2 ft 6 in. / 0.76 m | Platform B: 4 ft / 1.22 m | Horizontal Outreach: 30 ft / 9.14 m
• Ground Clearance1 ft 3 in. / 0.38 m
• HeightMachine: 7 ft 5 in. / 2.26 m | Ground Entry: 1 ft 3 in. / 0.38 m | Up and Over: 18 ft / 5.49 m
• LengthMachine: 27 ft 4 in. / 8.33 m | Outrigger Footprint: 12 ft 4 in. / 3.76 m
• WidthMachine: 5 ft 7 in. / 1.7 m | Outrigger Footprint: 12 ft 8 in. / 3.86 m
• Platform Height50 ft / 15.24 m

• Capacities

• Hydraulic CapacityReservoir: 6 gal. / 22.71 L
• Cargo CapacityPlatform: 500 lb / 226.80 kg

• Weights

• WeightMachine: 4800 lb / 2177.24 kg
• FeaturesSwing Type: Non-Continuous
